Garrett ATX

ATX device

• Garrett ATX, the device is designed to overcome all terrains and harsh soil conditions, mineral, wet, saline soils…etc.
• The device operates with a depletion induction system and was designed in a military manner to operate in all difficult climates and to operate underwater. Double D search dishes were also designed, which give high sensitivity to small nuggets of raw gold and large pieces of gold.
• The ATX device is ideal for prospecting for gold in highly magnetic ground (ferrous soil) and for hunting treasures and jewelry.
• The ATX device is characterized by performing a high level of ground balancing on the soil and giving results through light indicators, in addition to the important advantage of eliminating iron metal and isolating it completely.
• The ATX device also provides detection of all metal targets present in the ground at the same time and in different tones without the need to perform isolation operations to enhance the detection of a single target.

The most important specifications of the ATX device

• Detecting all targets at the same time and with different tones without the need for isolation to enhance the target search process.
• Conduct a quick ground balancing operation on all types of soil – rocky, highly mineralized, salty, wet…etc.
• Double D search dishes help in discovering small pieces without the need to slow down the movement of the scanner.
• Detects to depths of up to a maximum of 3 metres.
• It hunts targets accurately while moving the device over the target or holding the device over the target without moving.
• Very accurate discrimination between metals, with the ability to completely eliminate the detection of iron.

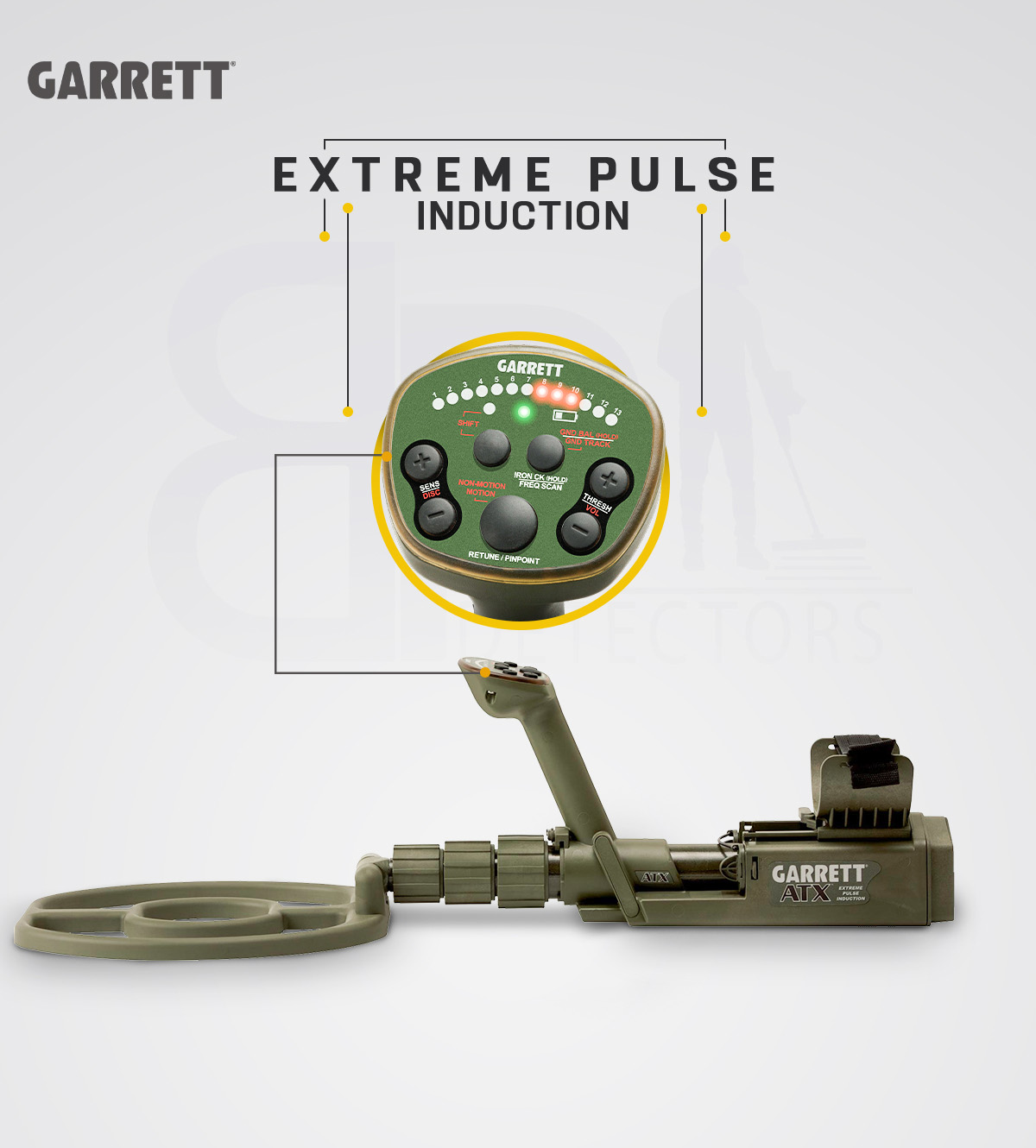

• Light indicators show the signal strength and show the device’s current settings.

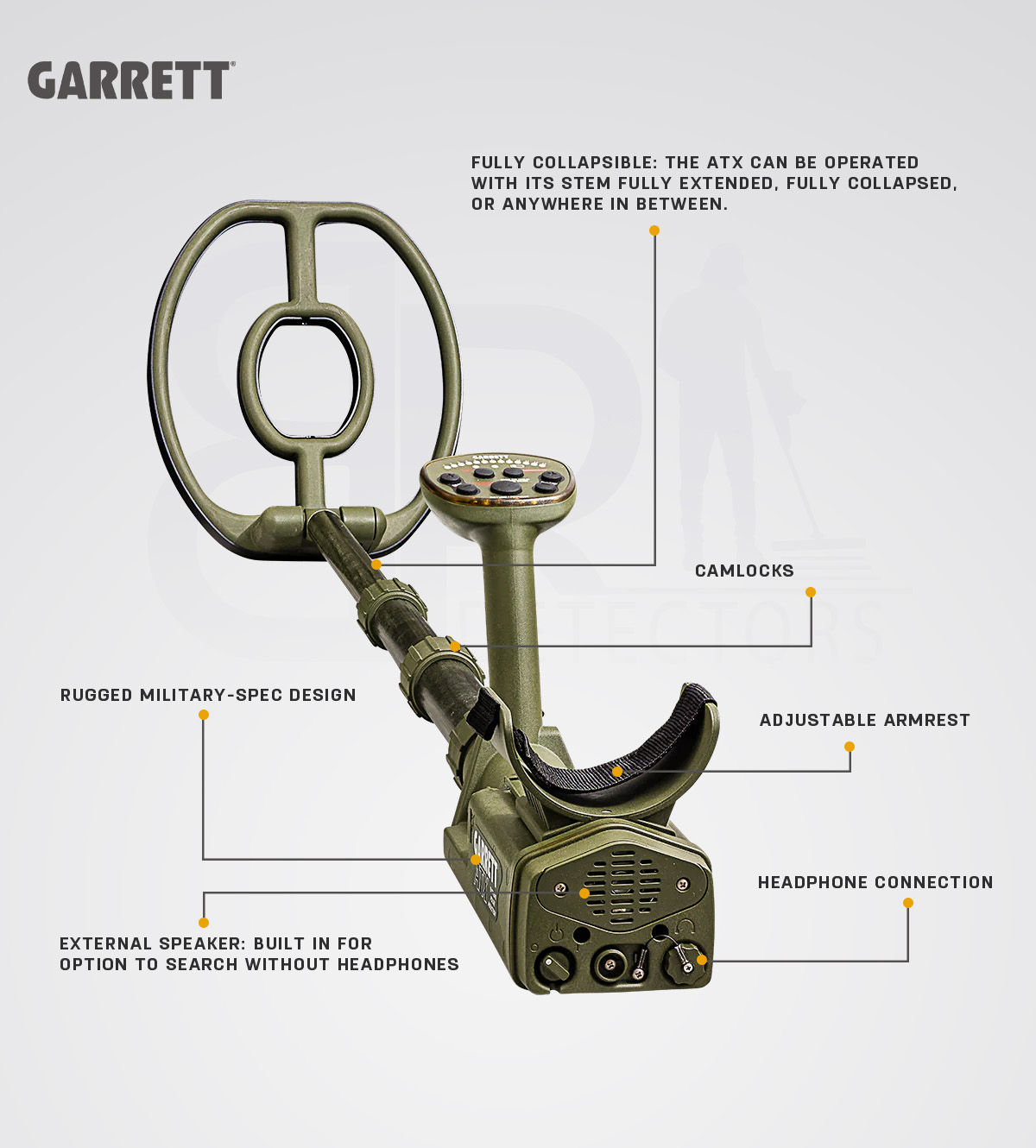

• An external speaker displays the sound of the signal coming from the target in addition to the earphone.
• The search frequency is adjusted automatically and any imaginary interference can be eliminated.
• Tune the device’s audio and quickly cancel any unwanted signals.
• Controlling the sound volume and adjusting it to a level that helps us hear the best signals coming from targets.

Features of the ATX device

• Type of search system: pulse induction system
• Discrimination: 25 adjustable settings
• Search method: fixed and moving modes
• Ground balance: normal ground – medium mineral – high mineral – wet – salty
• Device sensitivity: 13
• Sound threshold: 25 adjustable settings
• Search frequencies: 730 pulses per second, adjustable
• Search depth: 10 feet – 3 meters
• Target point setting: Yes
• Rapid iron check: Yes
• Basic research dish: double D, measuring 10*12 inches
• Weight of the entire device with the bag: 3.13 kg
• Device length: 0.51 – 1.71 meters
• Height control ability: depending on the height of the person working on the device
• Battery: Rechargeable 8.8 AA
• Warranty: two years
• Device manufacture: American
